Double K 850


(Click on image for a Larger View)

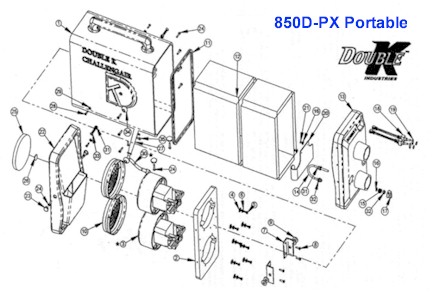

850D-PX Portable

Item# Part# Description Price Buy
1 812P Motor Hsg 173.95

2 855 Motor Mount 49.83

3 819 Motor 120v 118.58

  815 Motor Brushes
(set of 2)
16.62

4 10031 Washer .68

5 832 Screw .68

6 967 Washer .68

7 882 Steel Angle 2.67

8 5514 Screw .68

9 846 Washer .68

10 868 Intake Air Filter 7.11

11 813A Frt Hsg Gasket 10.82

12 840 Foam Sound Proofing Kit 21.86

13 888 Face Plate 30.41

14 847 U-Bolt 11.27

15 841 Steel Compression Spring 2.28

16 842 Washer .68

17 5509 Black Switch Knob 2.20

18 851 2pos Toggle Switch 7.67

19 523 on/off Face Plate .68

20 898 Neoprene Cover 12.42

21 443 Screw
22 800A Back Plate 71.13

23 413 Hsg Plug .78

24 5544 Screw .68

25 817 Intake Filter 5.8 Dia 5.04

26 5538 Velcro .68

27 571 Cord Relief Protector 6.23

28 843 Screw .68

29 9028 Washer .68

30 881 Cord 14' 19.33

31 835 Locking Nut .68

32 5506 Nut 1.42

33 871 Screw .68

34 893 Rubber Foot 1.93

35 877 Quick Tie Wrap .87





(Click on image for a Larger View)

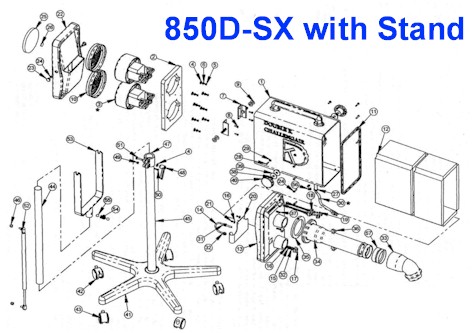

Double K 850D-SX with Stand

Item# Part# Description Price Buy
1 812S Motor Hsg 173.95

2 855 Motor Mount 49.83

3 819 Motor 120v 118.58

4 10031 Washer .68

5 832 Screw .68

6 967 Washer .68

7 882 Steel Angle 2.67

8 5514 Screw .68

9 846 Washer .68

10 868 Intake Air Filter 7.11

11 813A Frt Hsg Gasket 10.82

12 840 Foam Sound Proofing Kit 21.86

13 888S Face Plate 28.66

14 847 U-Bolt 11.27

15 841 Steel Compression Spring 2.28

16 842 Washer .68

17 5509 Black Switch Knob 2.20

18 851 2pos Toggle Switch 7.67

19 523 on/off Face Plate .68

20 898 Neoprene Cover 12.42

21 443 Screw
22 800A Back Plate 71.13
23 413 Hsg Plug .78

24 5544 Screw .68

25 817 Intake Filter 5.8 Dia 5.04

26 5538 Velcro .68

27 571 Cord Relief Protector 6.23

28 843 Screw .68

29 9028 Washer .68

30 881 Cord 14' 19.33

31 835 Locking Nut .68

32 5506 Nut 1.42

33 890 Nozzle 23.71

34 892 Arm Extension 29.87

35 807 Gasket 5.92

36 555 Knob 2.75

37 801 Screw .68

38 803 Washer .68

39 899 Washer 1.93

40 849 Knob 7.39

41 9023 Stand Base 67.98

42 9022 Locking Caster 9.21

43 9021 Caster 7.24

44 838A Tube 1-3/8 OD x 24" 24.92

45 9020A Tube 1-5/8 OD x 30" 59.52

46 808 Acorn Nut .68

47 7003 Clamp Tube Stand Adj. Sleeve 12.40

48 7033 Handle Lever 11.57

49 5531 Nut .68

50 7019 Screw .68

51 7015 Carriage Bolt .68

52 830 36" Lift-O-Mat 49.81

53 887A Mounting Fork 71.89

54 7048 Compression Spring 3.08

55 7047 Chromed Steel Ball 1.56

56 877 Quick Tie Wrap .87

57 7046A Arm Ext. Sleeve

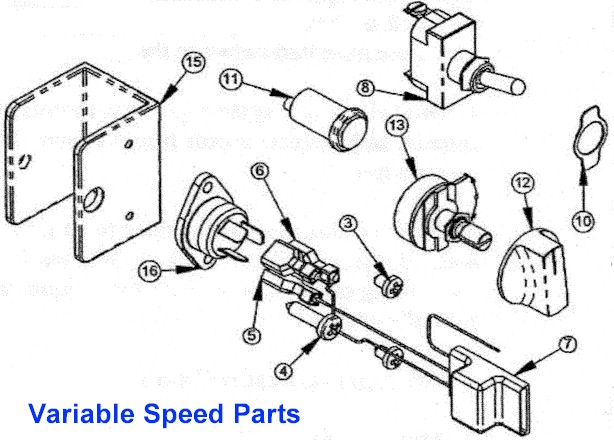

Variable Speed Parts

Item# Part# Description Price Buy
3 845 Screw .68

4 5514 Screw .68

5 9015 Terminal .68

6 852 Terminal .68

7 641 Printed Circuit Board 22.42

8 814 Toggle Switch 16.60

10 523 Face Plate .68

11 834 Indicator Light 7.14

12 5509 Knob 2.20

13 634 Speed Control 12.42

15 865 U Channel 1.61

16 640 Triac 22.42
