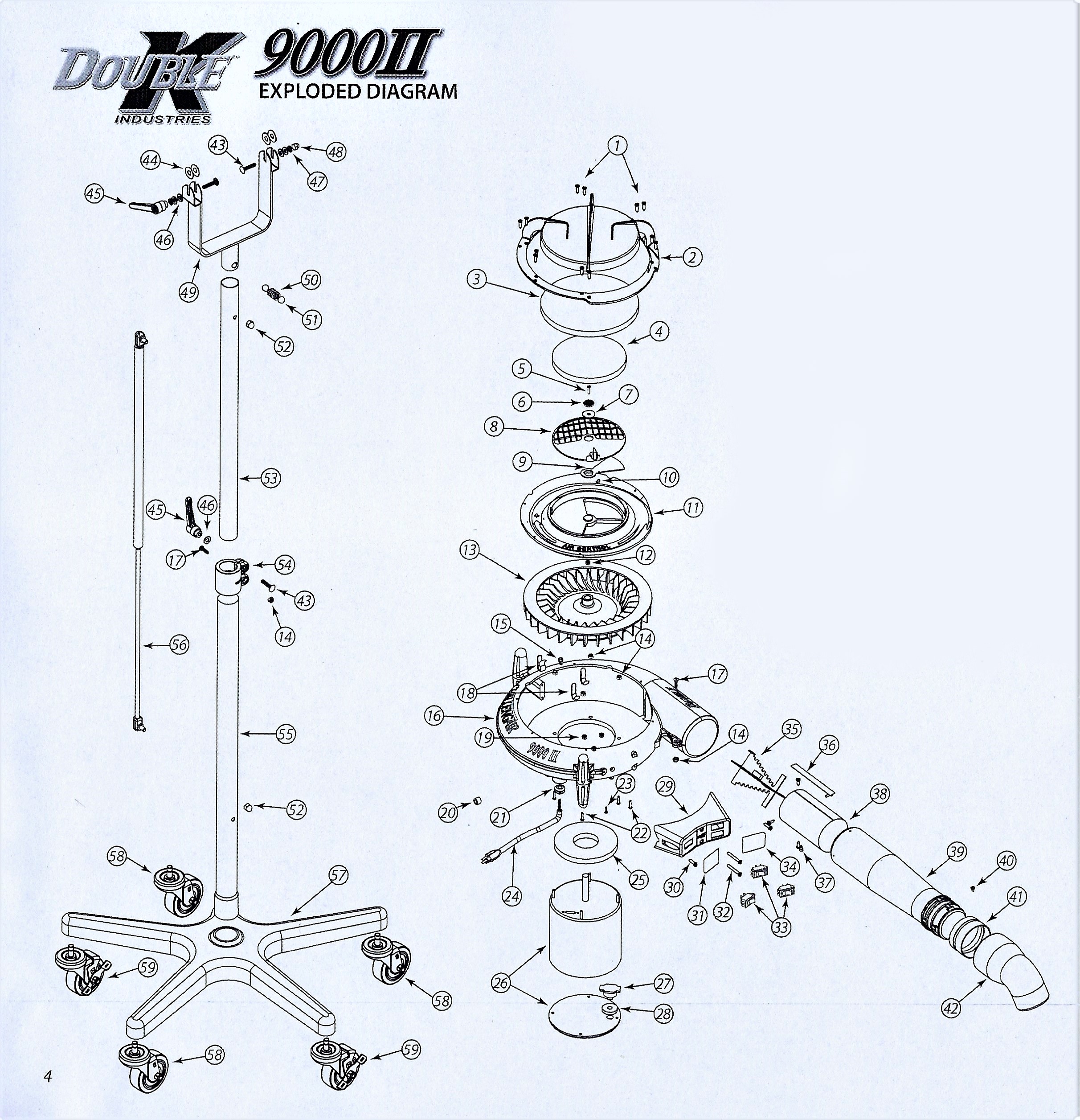

Double K 9000II

(Click on image for a Larger view)

Item# Part# Description Price
1 7020 Screw .70
2 7032 Sound Cap 20.26
3 7049 Sound Absorbing Disc 5.07
4 7029 Air Intake Filter 5.00
5 9036 Screw 6-32x5/8 .70
6 5538 Velcro for Filter .70
7 7014 Washer #10 1" OD .70
8 7010 Intake Air Control 8.12
9 7055 Secondary Louver Air Intake
10 2091 Rivet 3/8x1/8
11 7065-1 Fan Housing Cut Out 28.14
12 5533 Nylon Insert 6-32 .70
13 7001 Fan Blade 24.33
14 5531 Nylon Insert 10-32 .70
15 877 7" Cable Tie .90
16 7065-H Housing 106.12
17 7019 Screw 10-32 x 3/4 .70
18 5532 Cable Clamp .70
19 5533 6-32 Locking Nut .70
20 7030 Nylon Spacer .70
21 534 Cord Grommet .82
22 9036 Screw 6-32 x 5/8 .70
23 10019 Screw 6-32 x 1/2 .70
24 881 Cord 19.91
25 10109 Filter 5.00
26 7002-A Motor 115v 157.58
27 7051 Switch 22.81
28 7004 Gasket 2.53
29 7009 Switch Box 10.14
30 7034 Screw #10-16 x 3/4 .70
31 7061 Label 2.60
32 7017 Screw 10-16 x 1 1/2 .70
33 2148 Switch 7.70
34 7062 Label 2.60
35 7044 Heating Element 115v 38.50
36 10122 Graphite Tape
37 9003 Screw #8 x 1/2 .70
38 7054 Shield for Heating Element 5.54
39 7066-1 Arm Extension 37.45
40 7073 8-32 x .25 Machine Screw .70
41 7046A Sleeve, Arm Extension 3" OD
42 7065-A Nozzle 65.96
43 7015 Carriage Bolt 1/4-20 x 1 1/4 .70
44 7013 Washer 1" OD .70
45 7033 Handle Lever 11.92
46 10031 Washer 1/4" .70
47 967 Split Washer 1/4" .70
48 7031 Acorn Nut 1/4 - 20 .70
49 7011 Mounting Fork 74.05
50 7048 Mounting Fork Spring

3.17

51 7047 1/2" Steel Ball 1.61
52 808 5/16-18 Nut .70
53 838A Tube 1 3/8" ODx24" 25.67
54 7003 Clamp 12.77
55 9020A 30" Tube 61.31
56 830-1 36" Gas Spring 51.30
57 9023 26" 5 Leg Stand Base 70.02
58 7064 3.5" Caster 9.93
59 7063 3.5" Locking Caster 12.21
